IP66 High Power LED Flood Light

Product Categories
LCD-CESP LIGHTING,CO., LIMITED
Contact Now

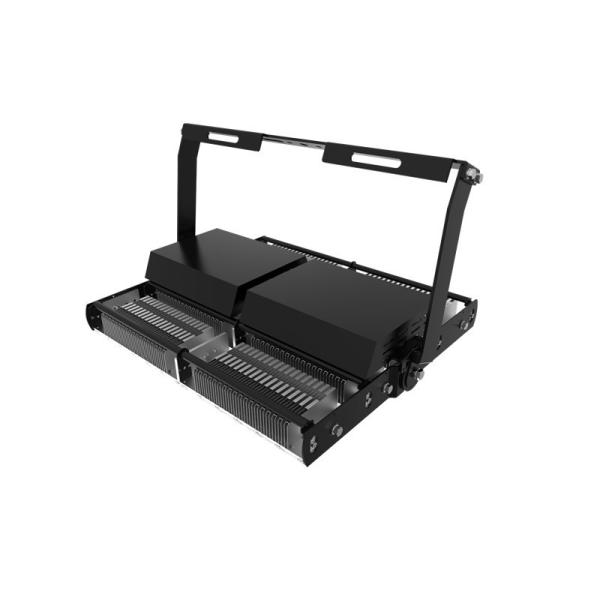

IP66 High Power LED Flood Light

Brand Name : LCD-CESP

Model Number : LCD-LYEGM-960B

Certification : CE RoHs SAA ETL UL TUV

Place of Origin : SHENZHEN, CHINA

MOQ : 1pcs

Price : usd

Payment Terms : T/T, Western Union, L/C

Supply Ability : 5000 piece/ month

Delivery Time : 5-12 work day

Packaging Details : Carton box

Ip rating : IP66 waterproof and dustproof

Input voltage(v) : AC100-277V,AC85-265V,AC200~240V,18,100-277 / 347-480

Lifespan : 100000

Operate Temp. : -30~60℃

Power : 120W, 240W, 320W, 480W, 720W, 960W, 1200W, 1500W

Warranty : 5 years,5-10 Years

Contact Now

high power LED flood light 960w beam angle 20 153600lumen IP66 IK09 160lm/w



Features:

  1. Adopted high heat conduction fin heat dissipation technology,advanced convection hole design which can rapidly dissipate heat when installed in the lamp.
  2. Excellent operating temperature -40°C ~ 50°C
  3. The ultra-thin fin heat dissipation structure reduces the weight of the module, effectively reduce the weight of lamps while satisfying the heat dissipation.
  4. Variety beam angles,150x70°,145x100°,24°,36°,60°,90°
  5. High safety,low voltage input voltage is safe for people, which effectively prevents electric shock and electric leakage.
  6. Easy to assemble and maintain with national standard M15 electrical interface, achieved plugged and play,only need loosening the screw during maintenance.
  7. Green product,no UV,IR radiation or mercury pollution.Passed IEC62471.
  8. With excellent housing design reach IP66 rating.
  9. Life-span over 50,000 hours,5 years warranty.

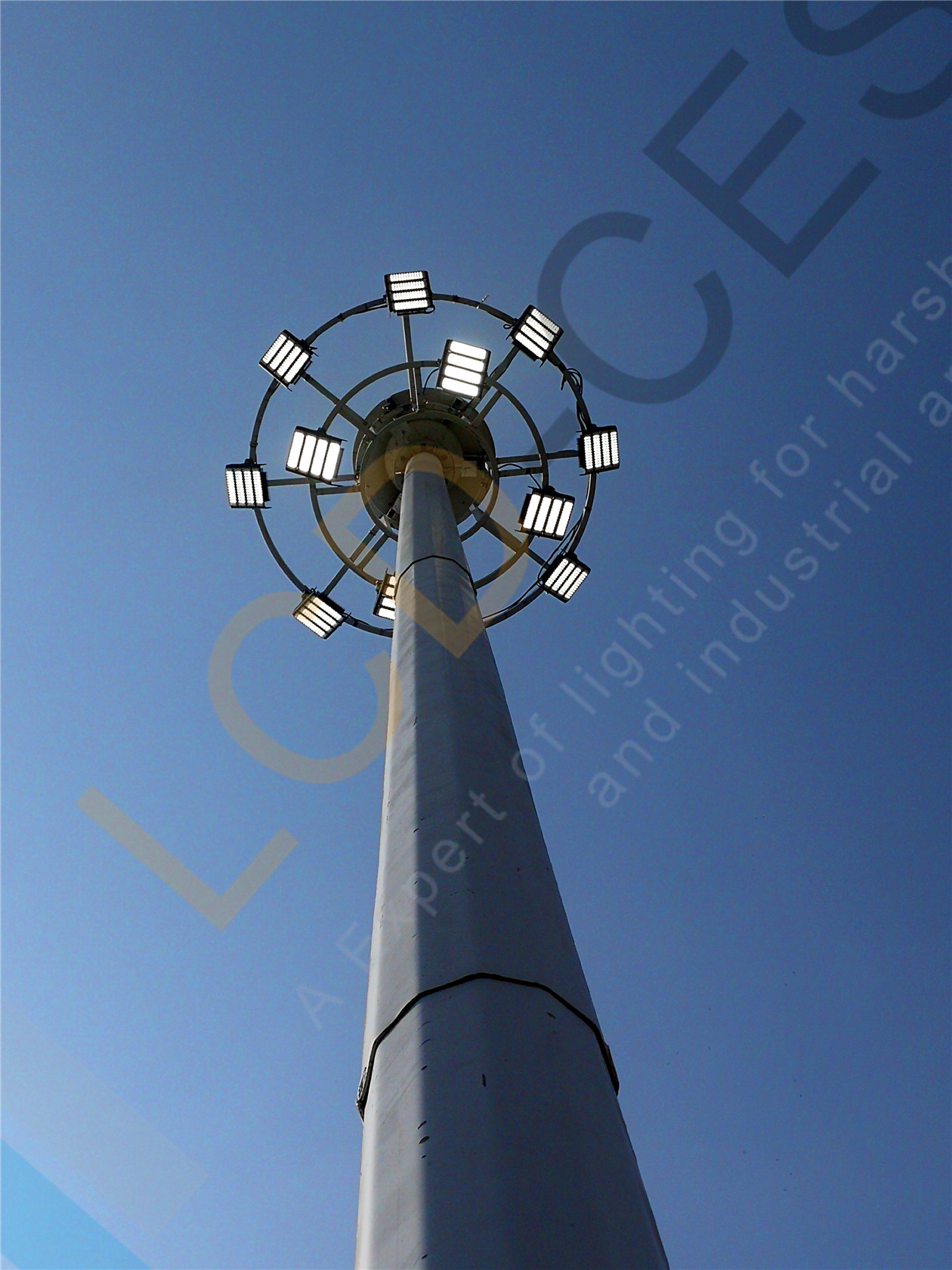

960W Skyscraper floodlight

  • Power: 960w
  • Voltage: 240v
  • Lumen: 144000lm
  • Replace: 3200W MHL
  • Application: Skyscraper

IP66 High Power LED Flood Light



Technical:

Efficiency

(lm/W)



Lumen

Maintenance

 CCT CRI

Weight

(KG)

Surge

Protection
100~170LM/W 40 / 70 /100K HOURS L80/B10

3000K

4000K

6500K

70

80

90

3LED MODULES:

MAX 7.4 KG

2 LED MODULES:

MAX 5.2 KG

1 LED MODULE:

MAX 2.6 KG

 Up to 4KV

Impacts



 IP Grade Operation Temp. Flicker Power Beam angle

IK09



 IP66 -30°~+55° <2% 120W~1500W 20°~140°



Installation:

1. Non-specialist electricians please do not repair or modify this product without authorization;
2. Please turn off the power before installation;
3. Before installation, please check whether the voltage marked on the lamp is consistent with the input voltage to be connected;
4. In order to ensure the service life of the product, please do not use it in a place with strong acid mist;
5. Pay attention to shock protection during installation and transportation;
6. Before installation, ensure that the installation position can withstand 10 times the weight of the product, and install it in a flat place without vibration, no swing, no fire hazard;
7. If the lamp fails, please place the lamp in one place and send it back to the company for inspection and repair.
8. If the lamp body or wire is damaged, please stop using it immediately.

IP66 High Power LED Flood Light


Product Tags:

120W IP66 High Power LED FloodLight



144000lm IP66 High Power Flood Light



240v 144000lm LED Flood Light


Buy cheap IP66 High Power LED Flood Light product

IP66 High Power LED Flood Light Images
