Outdoor LED SMD Flood Light

Outdoor LED SMD Flood Light

UV protected polycarbonate lens 60 degree 30W LED SMD Flood Light for outdoor lighting

Product data

Eagle FS series is designed to meet the requirements of a wide range of floodlighting applications such as public area lighting,car parking,billboard,security,work site etc. FS Flood makes sure you can choose the exact number of fixtures you need for your application. Incorporating extremely high-efficiency optics and LEDs LUMILEDs & OSRAM chip and Meanwell driver, you get a highly competitive solution offering an outstanding lux/usd dollar ratio and energy savings of up to 75%. Those range choice of optics ensures maximum application coverage. FS Flood is really easy to install − you simply plug it in and select the best option for your needs. Perfect for replacing traditional lamp meanwhile saving money and saving time.

General Information
Lamp family code :  LCD-FS-033 / 035 [ 4050 lm to 4800 lm]
Light source color :  warm white 3000K , neutral white 4000K , cool white 6000K
Light source & lens replaceable : Yes  [LUMILEDs , Cree , Bridgelux , OSRAMs / different optic lens ]
Number of gear : one bracket
Driver/power :   Meanwell driver Or LCD brand driver
Optical cover type : 4mm thick Flat temper glass
Luminaire light beam spread : 15° , 25°, 30°, 60° , 90°, 120° , TYPE I , TYPE II , TYPE III , TYPE IV , TPYE V , Asymmetric 45°
Protection class : IEC Safety class I
CE mark : CE mark
Warranty period 5 years
Optic type  :  outdoor & indoor Symmetrical & Asymmetrical
RoHS mark :  RoHS mark
Light source engine type : LED

FS Family

 Operating and Electrical
Input Voltage                                       100 to 277 VAC or 12-28 VDC
Input Frequency                                  50 to 60 Hz
Inrush current                                      340 A
Inrush time                                          0.025 ms
Power Factor (Min)                             >0.95

Controls and Dimming
Dimmable on requests                      1-10V , DALI , Triac



Mechanical and Housing
Housing Material                                 Aluminum die-cast 6063
Reflector material                                Polish Aluminum
Optic material                                      Acrylate
Optical cover                                       4mm temper Glass
Fixation material                                  corrosion resistant powder coating carbon Steel
Mounting device                                  Mounting bracket adjustable
Optical cover                                       Flat
Optical cover                                      Clear


Approval and Application
Ingress protection code                     IP65 [ Dust penetration-protected, jet-proof]
Mech. impact protection code           IK08 [ 5 J vandal-protected]
Surge Protection                               Luminaire surge protection level >2 kV

Initial Performance (IEC Compliant)
Initial luminous flux (system flux)       3900-4800 lm
Luminous flux tolerance                     +/-6%
Initial LED luminaire efficacy             130-160 lm/W
Init. Corr. Color Temperature             3000K  4000 K 6500K
Init. Color Rendering Index                ≥75
Initial chromaticity (0.380, 0.390)      SDCM <5
Initial input power                              30 W
Power consumption tolerance          +/-10%

Product cut sheet


Over Time Performance (IEC Compliant)
Driver failure rate at 7000 h 0.5 %
Useful life L80B10 100000 h
Lumen maintenance at useful life of 100000 h,at 25 °C
93
Application Conditions
Ambient temperature range -30 to +45 °C


Dimensional drawing

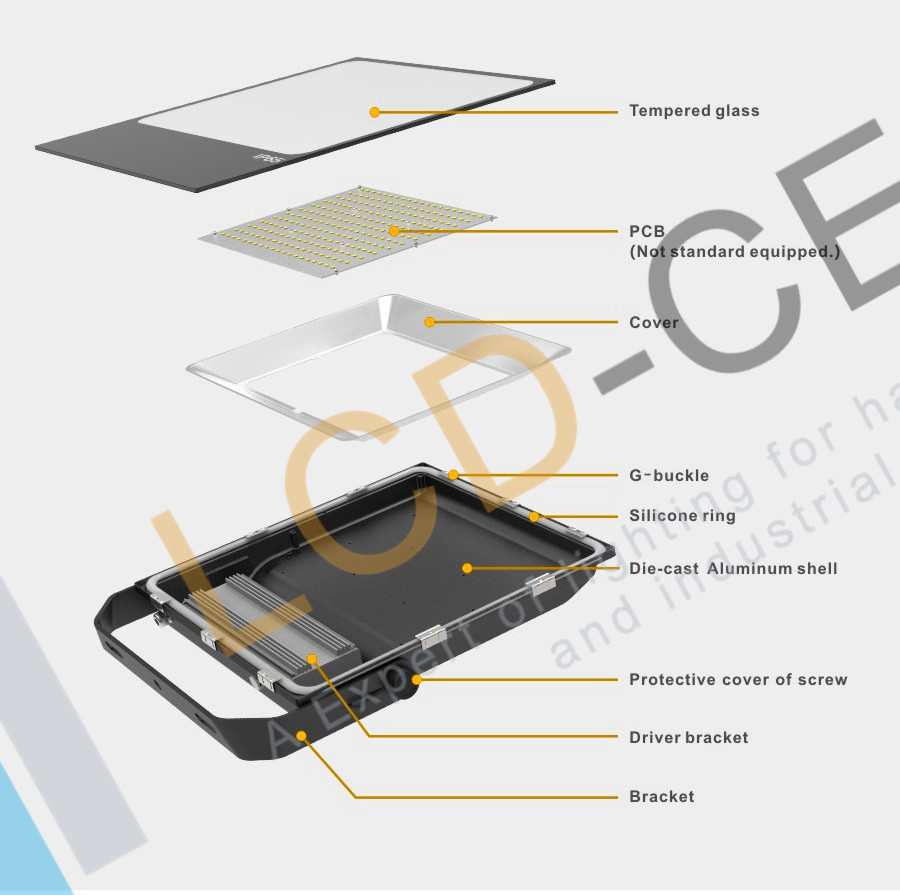

Installation & Mounted and package list

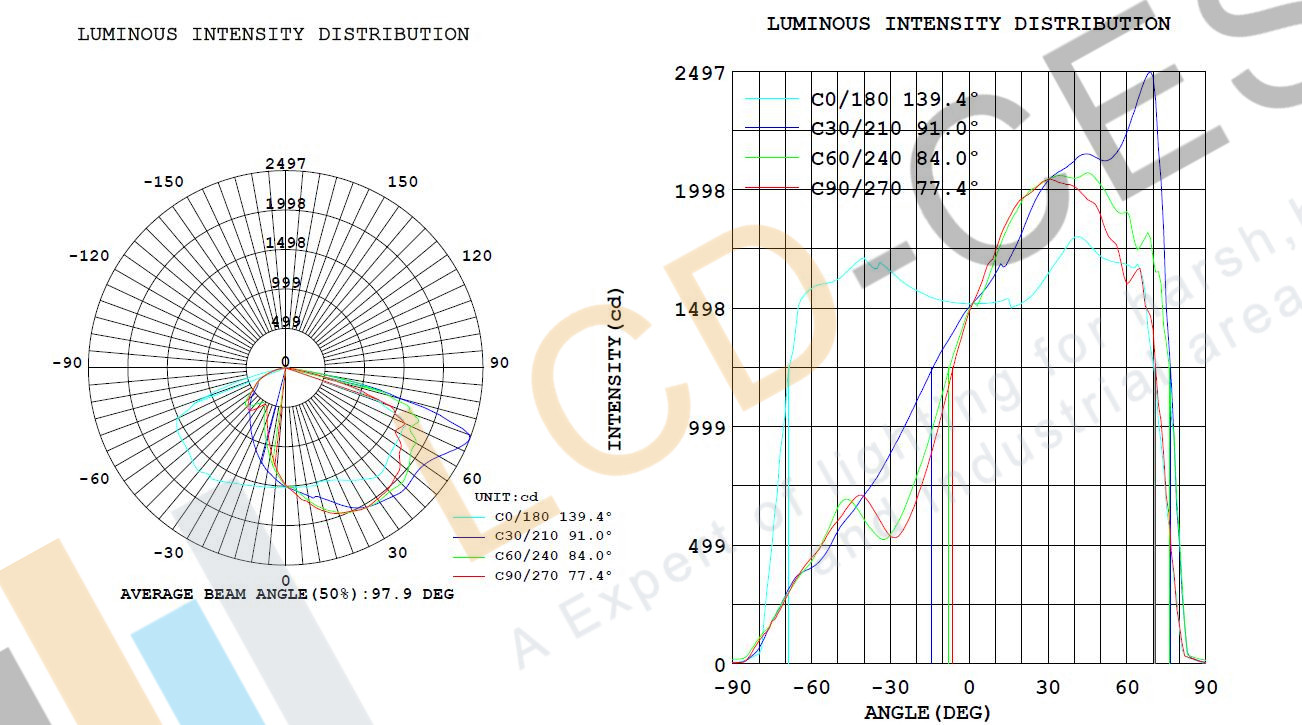

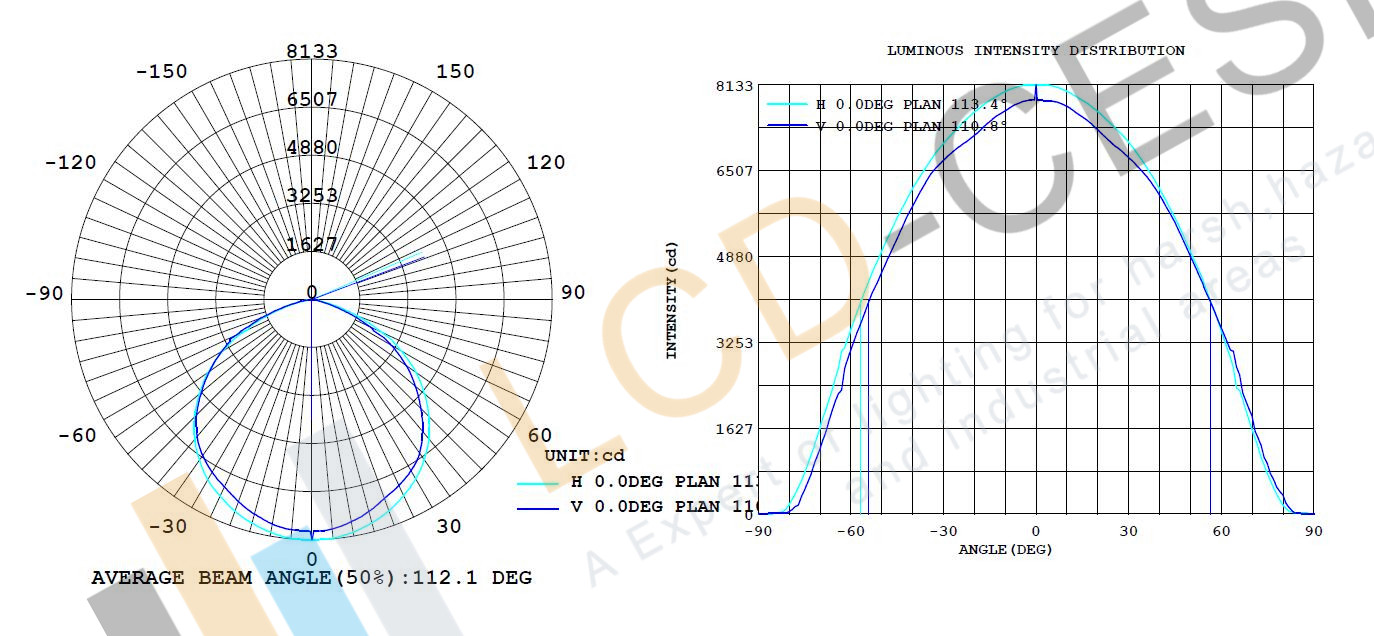

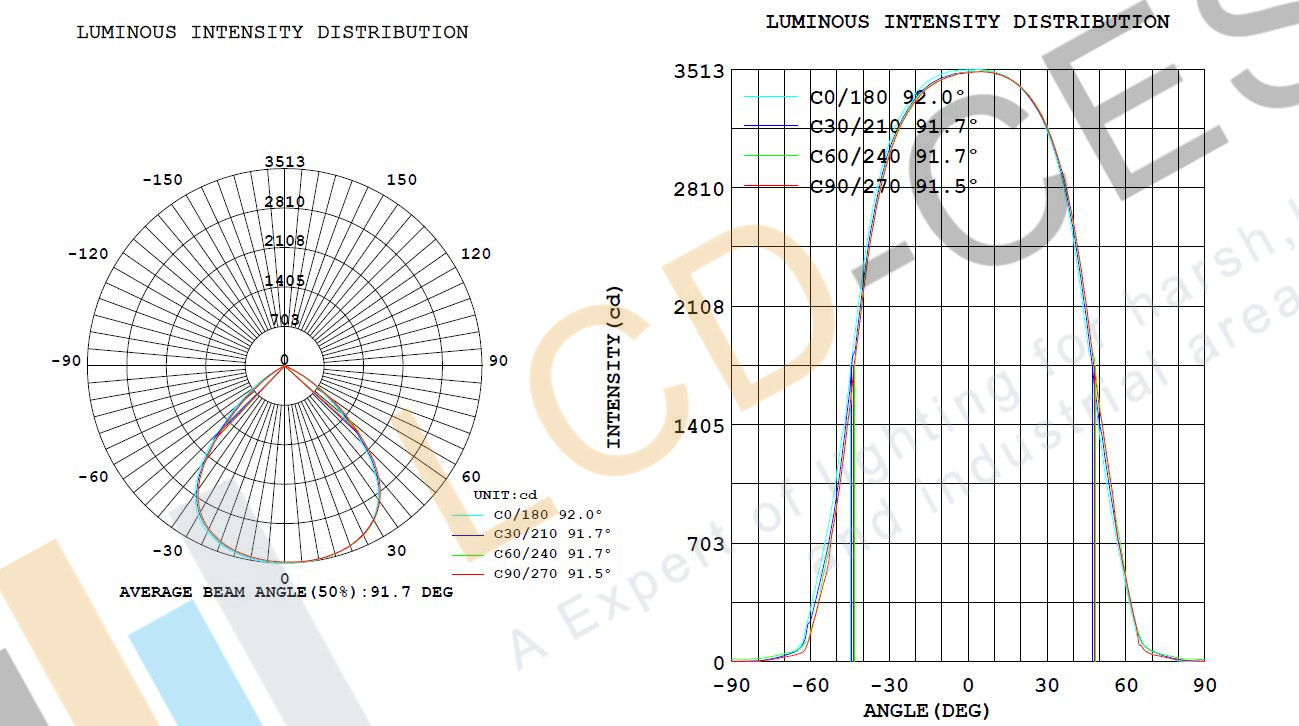

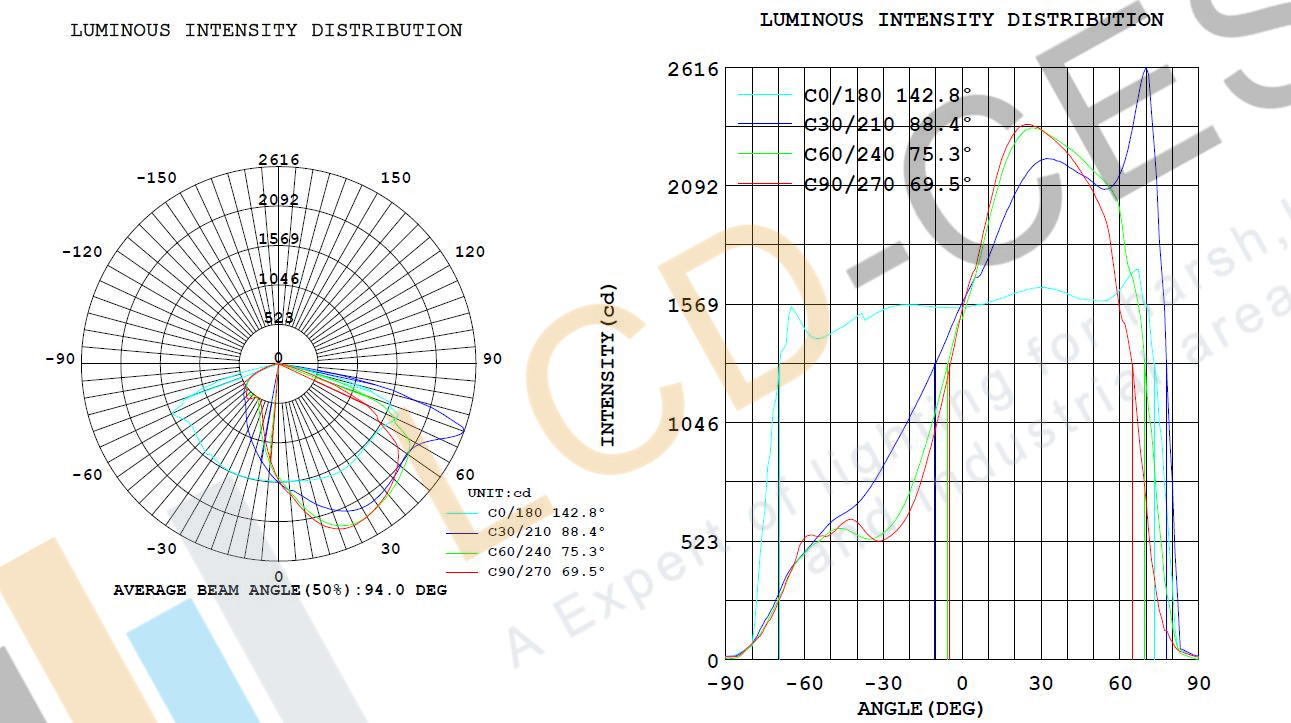

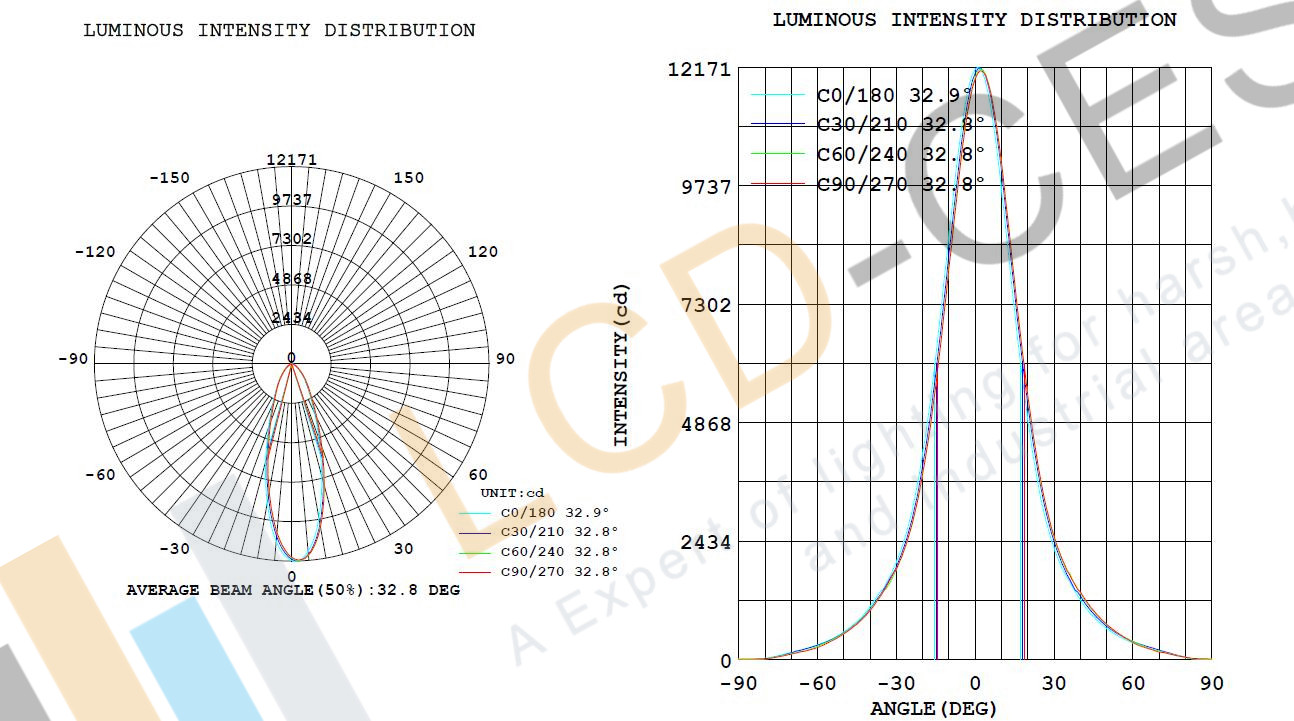

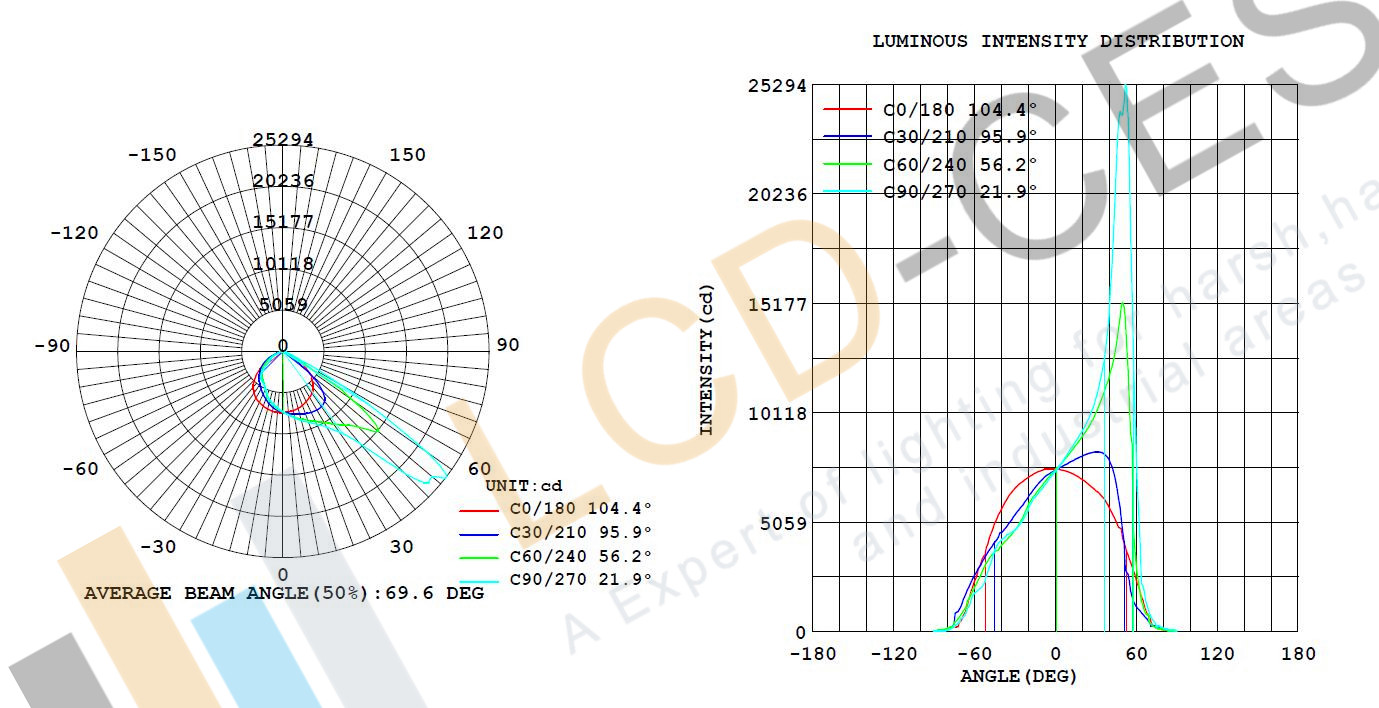

Photometric data
