Waterproof IP65 15000 Lumen LED SMD Flood Light 100W

Name: Waterproof IP65 15000 Lumen LED SMD Flood Light 100W
Brand: LCD-CESP
Price: 1 USD

Buy cheap Waterproof IP65 15000 Lumen LED SMD Flood Light 100W product

Brand Name : LCD-CESP

Model Number : LCD-FS-105-LN

Certification : CE RoHs SAA ETL UL TUV

Place of Origin : SHENZHEN, CHINA

MOQ : 1pcs

Price : usd

Payment Terms : T/T, Western Union, L/C

Supply Ability : 5000pcs/ month

Delivery Time : 5-12 work day

Packaging Details : Carton box

Application areas : Industrial & Maintenance , Car park , Logistical areas , airports , ports , trains , Sport facilities , Tunnel , billboard , High mast application , Roundabouts , warehouse , work site , etc

Power supply : MW

Structures and materials : die-cast and sheet metal aluminium body , stainless steel screws and brackets available

Optical cover : tempered low-iron glass

Lumens : 15000 Lumen

Mounting options : Adjustable stirrup & bracket

Contact Now

Waterproof IP65 15000 Lumen LED SMD Flood Light 100W

15500lm waterproof IP65 100W asymmetric wide beam LED SMD Flood Light for 6500K

Description

Flood lights have come a long way in the past couple of years with LED technology. When LED's were first introduced they were very useful and good for lower brightness, products like globes or LED strip lights achieved this. This was because they were not as efficient as they are now. If the manufacturer turned the brightness up on the...

100W FS-100 Floodlight

Brightness	15000 lumens (cold white)
Power	100Watts
Color Temperature	Amber White (2200K), Warm White (2700-3000K), Natural White (4000-4500K), Cold White (6000-6500K)
Dimensions	490 x 150 x 112.4mm (length x width x height)
Voltage	100-240V AC / 24V DC
IP Rating	IP66
Operating Temperature	-40°C à 50°C
Beam Angle	15°, 20°, 25°, 30°, 38°, 45°, 60°, 90°
Chipset	CREE XP-L
Lamp Type	LED
CRI	75
Power Factor	> 0.9
Housing	Aluminum alloy
Weight	11.3 kg
Warranty	5 years
Average life	50,000 hours
Certifications	ETL, FCC, ROHS, CE

Light Technical

Upward light output ratio 0
Standard tilt angle posttop 0°
Standard tilt angle side entry 0°

Operating and Electrical
Input Voltage 100 to 277 VAC or 12-28 VDC
Input Frequency 50 to 60 Hz
Inrush current 340 A
Inrush time 0.025 ms
Power Factor (Min) >0.95

Controls and Dimming
Dimmable on requests 1-10V , DALI , Triac

Waterproof IP65 15000 Lumen LED SMD Flood Light 100W

FS Family

Item	10W	20W	30W	50W	80W	100W	150W	200W
Input Voltage	90-265VAC or 12-28VDC
Input Current	0.05A	0.1A	0.15A	0.23A	0.38A	0.48A	0.7A	0.93A
Power Efficiency	>89%	>89%	>89%	>95%	>97%	>97%	>97%	>97%
LED Consumption	9W	18W	27W	45W	72W	91W	135W	185W
System Consumption	10W	20W	30W	50W	80W	100W	150W	200W
Power Factor	>0.95
Total Harmonic Distortion	THD< 20%
Dimmable	1-10V , DALI ,Triac on requests
Power Line	1.0m㎡three line
Chip Brand	LUMILEDs/CREE/Bridgelux / OSRAM (SMD3030) / SMD5050 on requests
LED Encapsulation	12LEDs	24LEDs	36LEDs	60LEDs	96LEDs	120LEDs	180LEDs	240LEDs
Rated LED Efficacy	160-180 lumen/w
Luminous Efficiency	130-160 lumen/w
Color Temperature	3000K / 4000K / 6500K
Luminous Output (Typ.)	1350lm	2700lm	4050lm	6750lm	10800lm	13500lm	20250lm	27000lm
CRI	Ra> 80
SCDM	SDCM <5
Lumen Maintenance	> 80%@50,000h

Mechanical and Housing
Housing Material    Aluminum die-cast 6063
Reflector material Polish Aluminum
Optic material Acrylate
Optical cover 4mm temper Glass
Fixation material corrosion resistant powder coating carbon Steel
Mounting device Mounting bracket adjustable
Optical cover    Flat
Optical cover    Clear

Approval and Application
Ingress protection code IP65 [ Dust penetration-protected, jet-proof]
Mech. impact protection code IK08 [ 5 J vandal-protected]
Surge Protection Luminaire surge protection level >2 kV

Initial Performance (IEC Compliant)
Initial luminous flux (system flux) 13500-15500 lm
Luminous flux tolerance +/-6%
Initial LED luminaire efficacy 130-160 lm/W
Init. Corr. Color Temperature 3000K 4000 K 6500K
Init. Color Rendering Index ≥75
Initial chromaticity (0.380, 0.390) SDCM <5
Initial input power 100 W
Power consumption tolerance   +/-10%

Product cut sheet

Waterproof IP65 15000 Lumen LED SMD Flood Light 100W

Over Time Performance (IEC Compliant)
Driver failure rate at 7000 h 0.5 %
Useful life L80B10 100000 h
Lumen maintenance at useful life of 100000 h,at 25 °C
Application Conditions
Ambient temperature range -30 to +45 °C

Waterproof IP65 15000 Lumen LED SMD Flood Light 100W

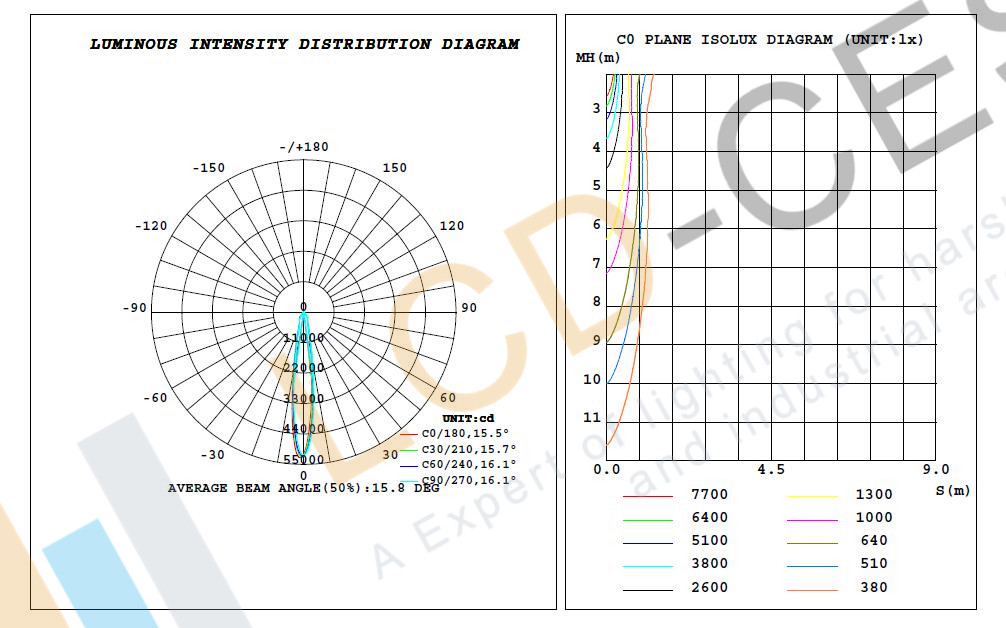

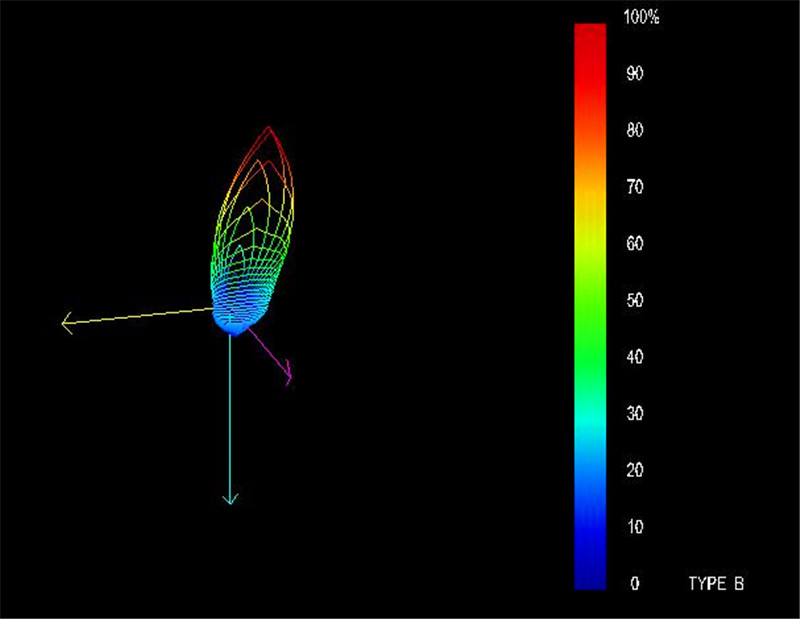

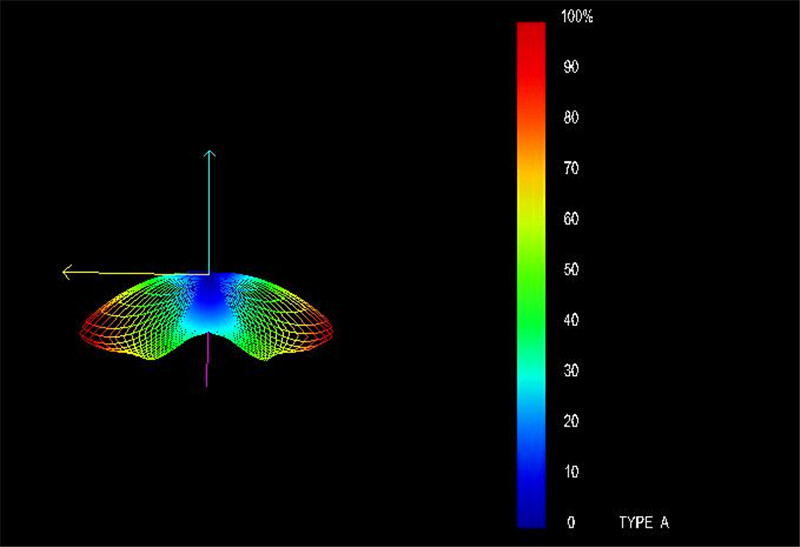

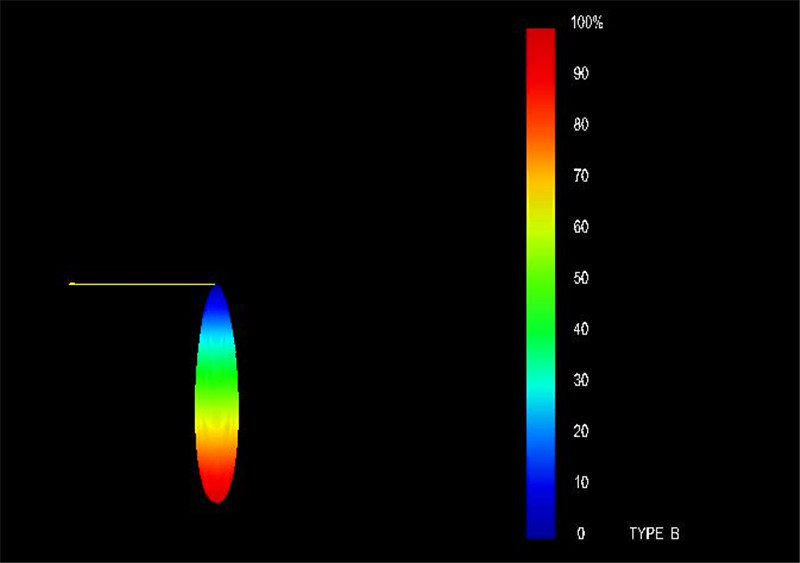

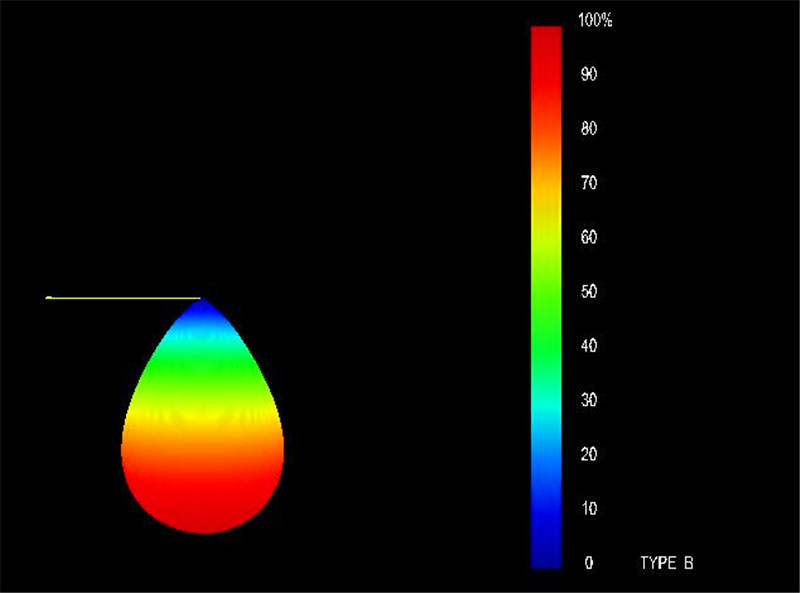

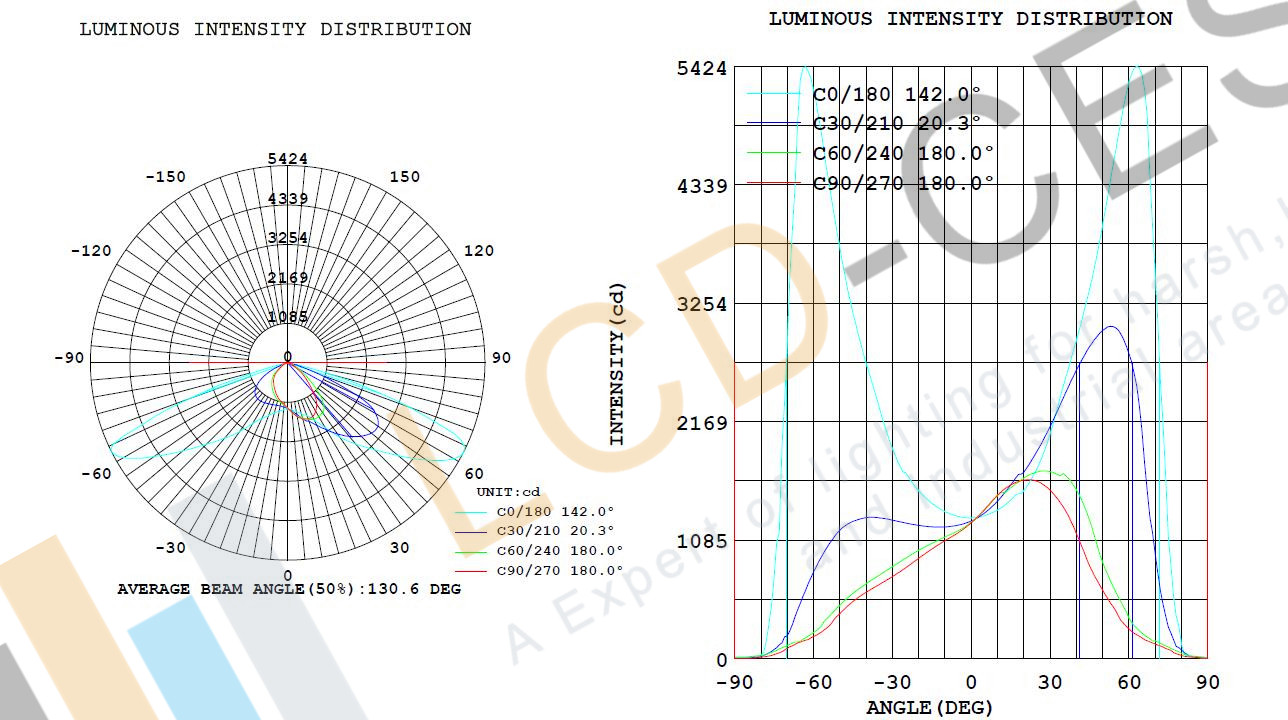

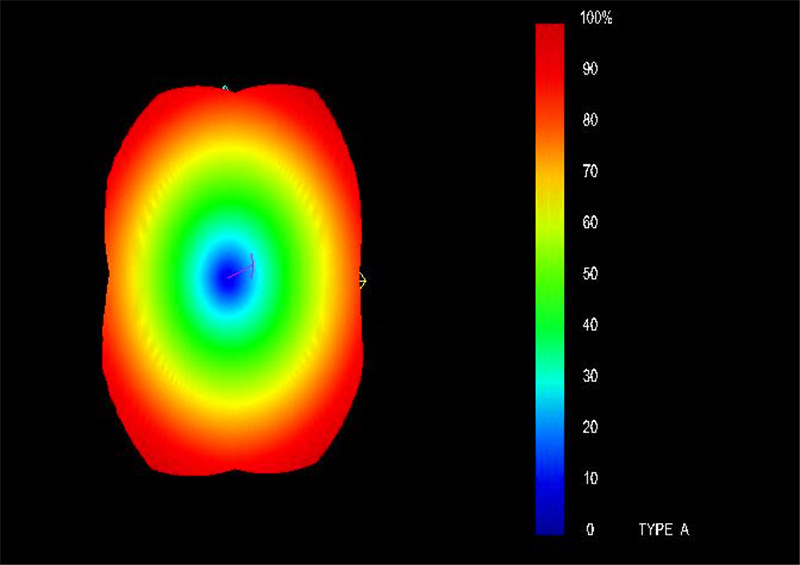

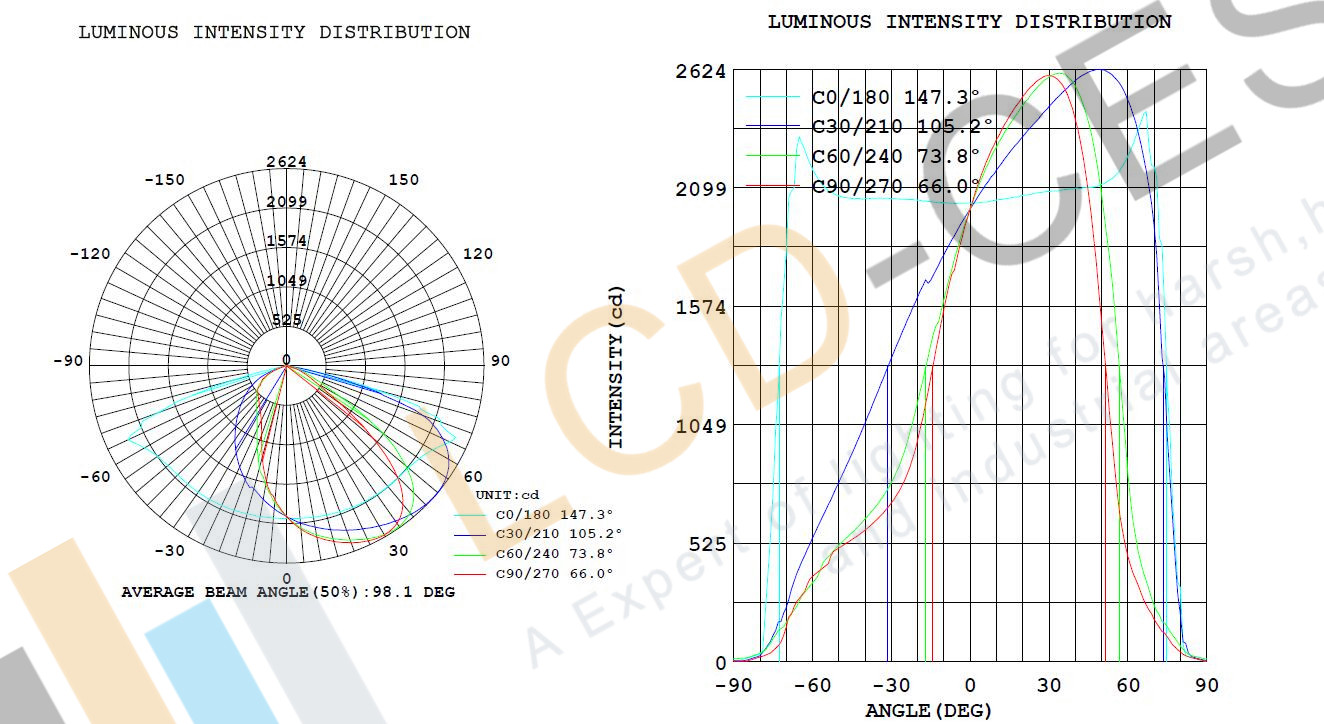

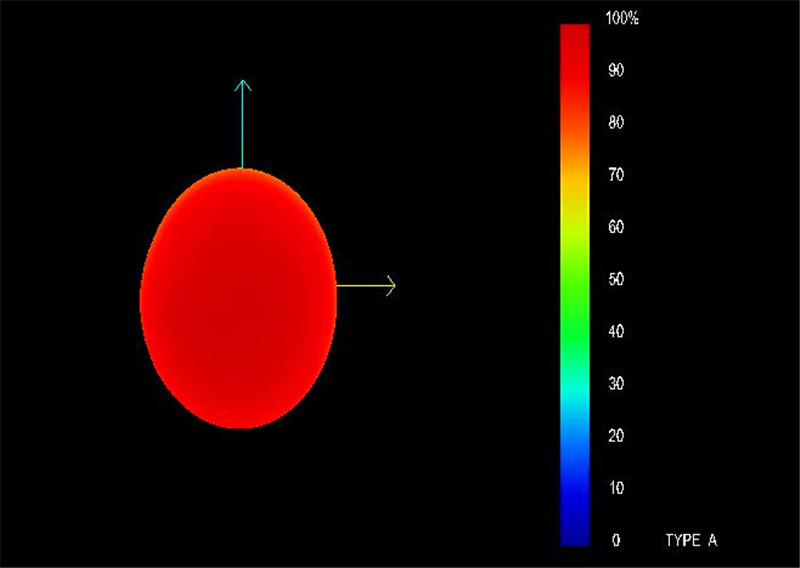

Photometric data

Waterproof IP65 15000 Lumen LED SMD Flood Light 100W

Waterproof IP65 15000 Lumen LED SMD Flood Light 100W
